Barrel blue rotary pump G 2″ (18 l/min)

Function

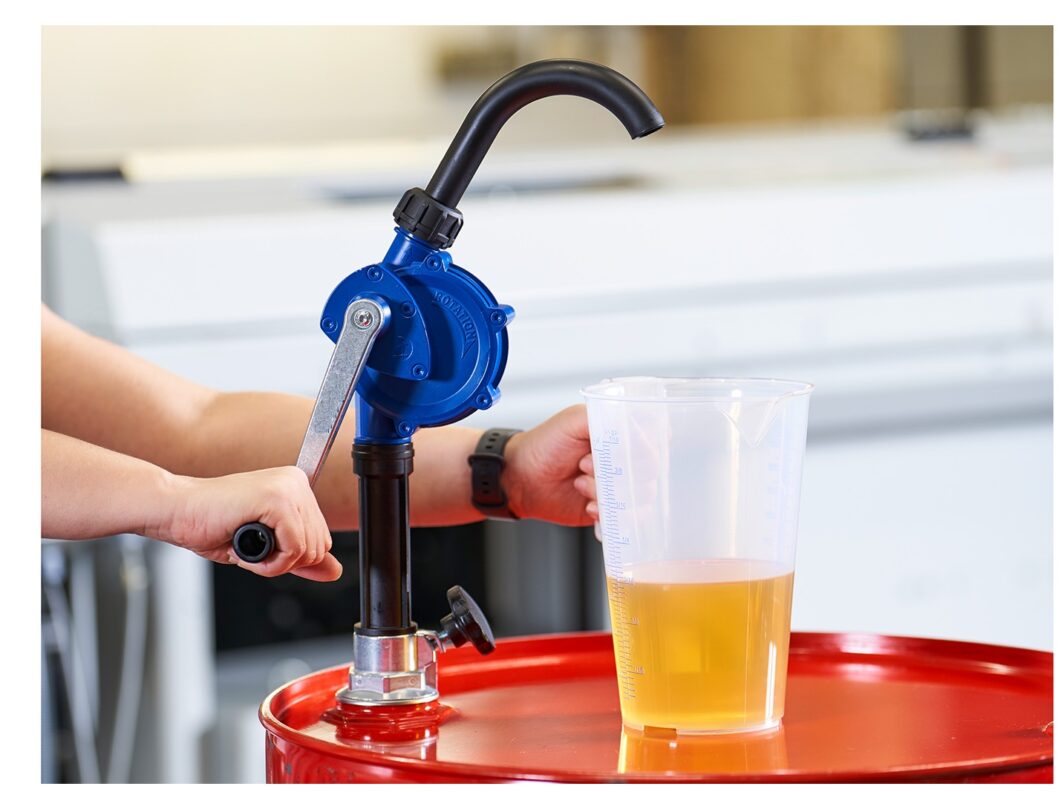

Blue rotary pump with discharge spout or discharge hose intended for use with 60L / 200L / 220L containers, barrels, drums and tanks.

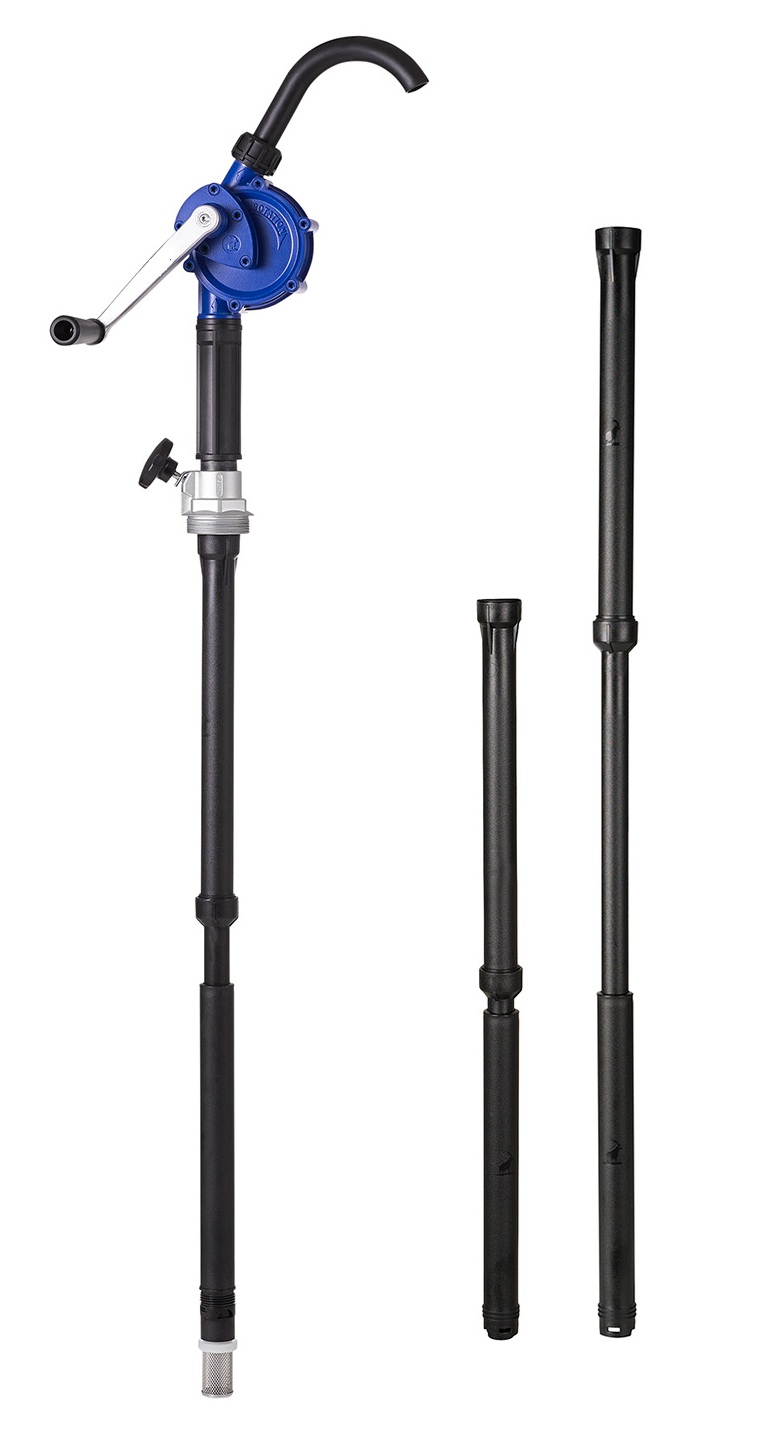

• Telescopic suction tube, adjustable in length (from 355 to 955 mm) with suction filter

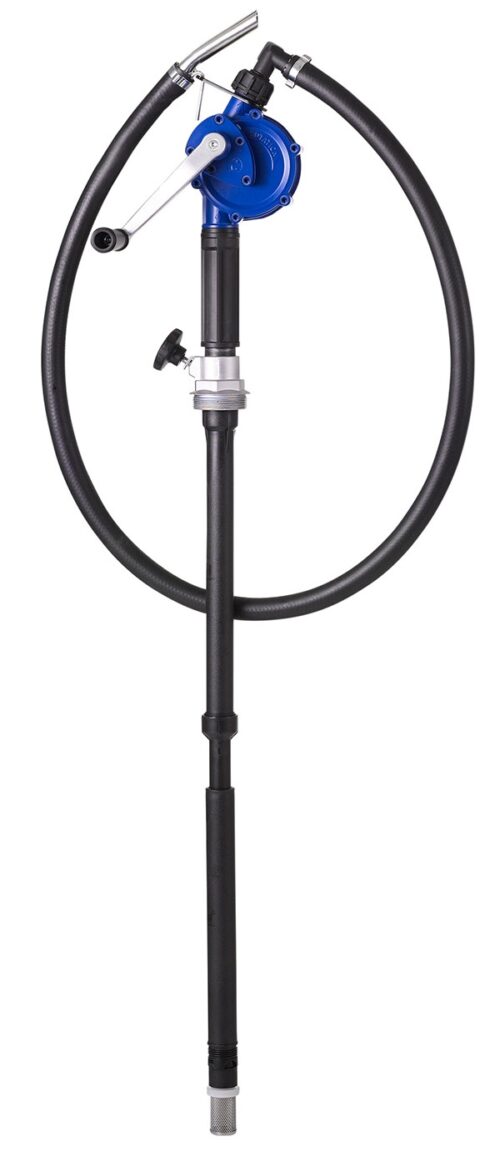

• Discharge spout or discharge hose
• Barrel screw coupling G 2”
• Packed in single carton box

Application

For lubricants and non-aggressive media, fuel oil, diesel, petrol, coolant fluid (undiluted), antifreeze for radiator only (undiluted), hydraulic oil, machining oil, gear oil, oils up to SAE 90.

Attention ! Do not use aqueous solutions or mixtures !

+ Product

  • Smooth hand-rotating operation
  • The pump can be positioned in 360°
  • Suction tube adjustable from 355-955 mm with suction filter
  • Assembly and fitting without tools needed

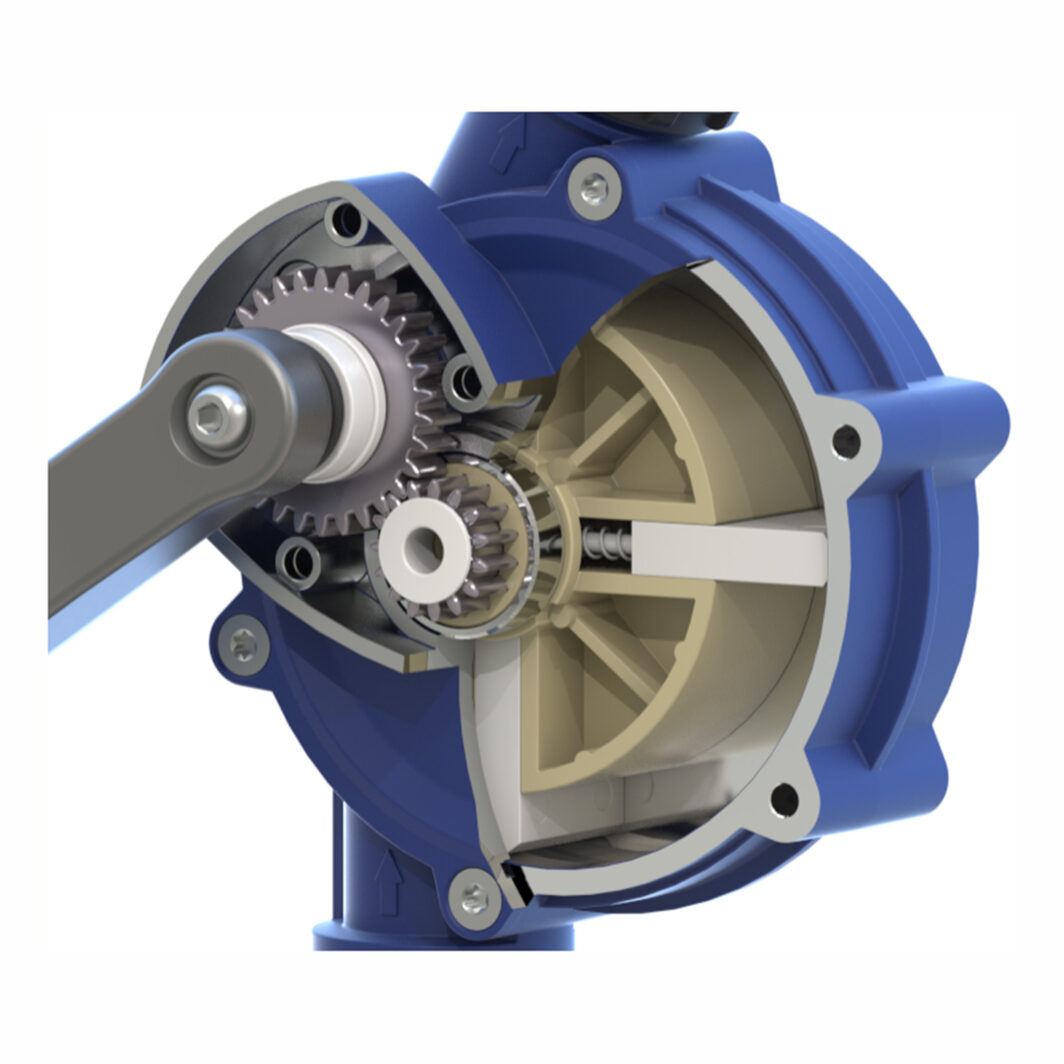

  • CNC machined, better pump efficiency and constant flowrate
  • All connections sealed through gaskets and O-rings
  • Completely dismountable – easy to clean

Technical Specifications

  • Delivery rate (l/stroke) : 0,30 l/stroke
  • Delivery rate at 60 strokes/min : Appr. 18L/min
  • Pumping media : lubricants and non-aggressive media, fuel oil, diesel, petrol, coolant fluid (undiluted), antifreeze for radiator only (undiluted), hydraulic oil, machining oil, gear oil, oils up to SAE 90.
  • Containers : 60/200/220L containers, barrels, drums
  • Discharge : Discharge spout or discharge hose Lg 2 m
  • Length, three-part suction pipe (mm): 355 to 955 mm
  • Barrel screw coupling : Barrel adapter G 2’’M
  • Material pump housing : Impact-resistant zinc die casting ZL 410
  • Dimensions (L x W x H) : 390 x 245 x 125 mm
