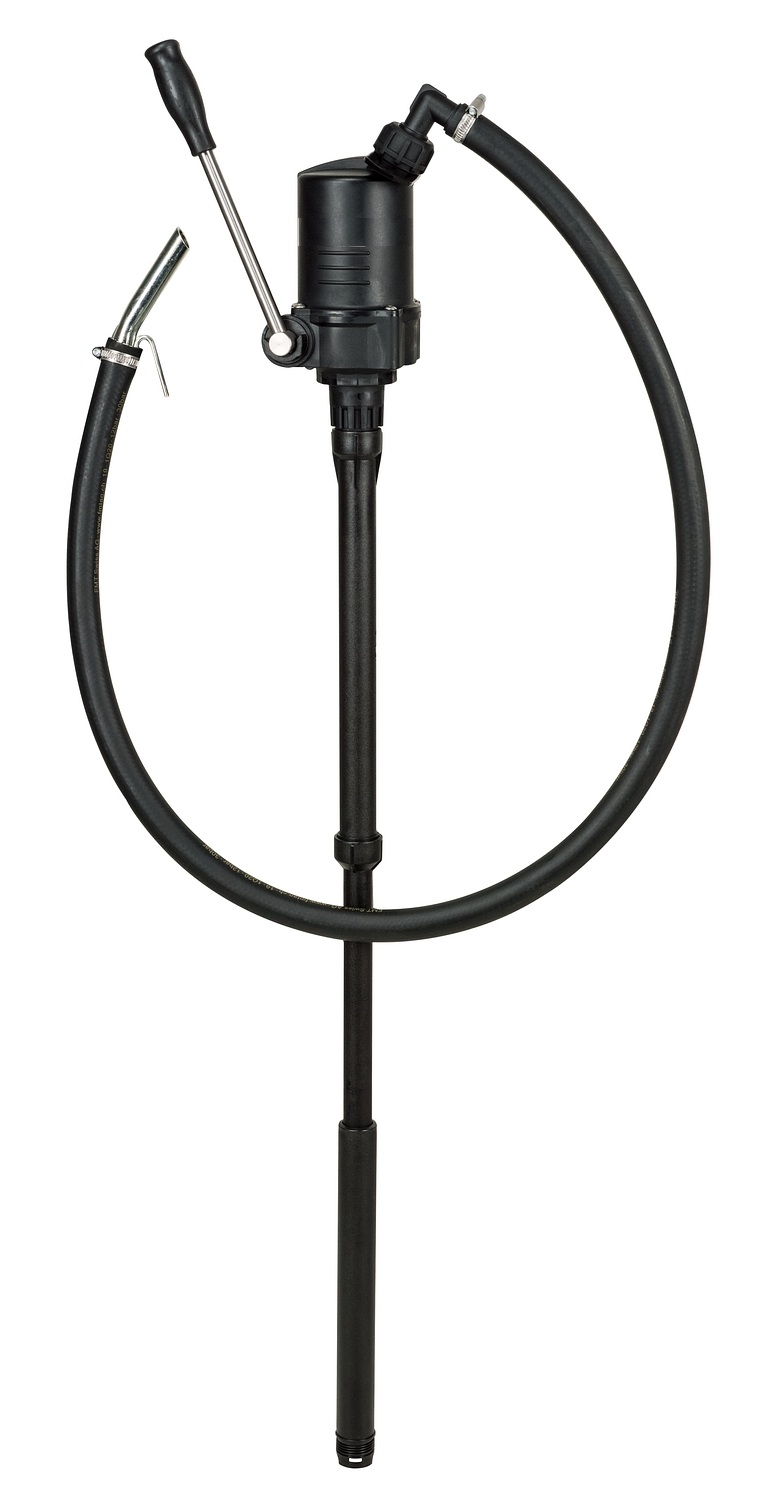

Barrel pump G 2″-M 64×4 (24 l/min)

Function

Pump housing with piston, hand lever and discharge spout intended for use with 60L / 200L / 220L containers, barrels, drums and tanks.

  • Telescopic suction tube, adjustable in length (from 355 to 955 mm)
  • Barrel screw coupling G 2” and barrel screw coupling M 64×4
  • Discharge hose, 1500 mm, with steel discharge spout

Application

For oils up to SAE 50, diesel, petroleum, kerosene, glycerin and antifreeze undiluted

+ Product

  • Hose holder
  • Constant delivery rate for many years
  • Completely dismountable – easy to clean
  • Simple barrel installation by screw coupling
  • Can be freely positioned in 30° increments
  • Valuable sales package

Technical Specifications

  • Delivery rate (l/stroke) : 0,40 l/stroke
  • Delivery rate at 60 strokes/min : Env. 24L/min
  • Pumping media : Oils up to SAE 50, diesel, petroleum, kerosene, glycerin and antifreeze undiluted
  • Usage : 60/200/220L container, barrel, drum
  • Discharge hose : Flexible 1500 mm with steel discharge spout
  • Length, three-part suction pipe (mm): 355 to 955 mm
  • Barrel screw coupling : barrel adapter G 2’’M and M 64×4 M
  • Materials of parts in contact with liquid
  • Pump body : ABS + PA6
  • Seals : FKM
  • Metal pieces : galvanized steel, stainless steel, powder coated steel
  • Dimensions (L x W x H) : 395 x 243 x 125 mm
