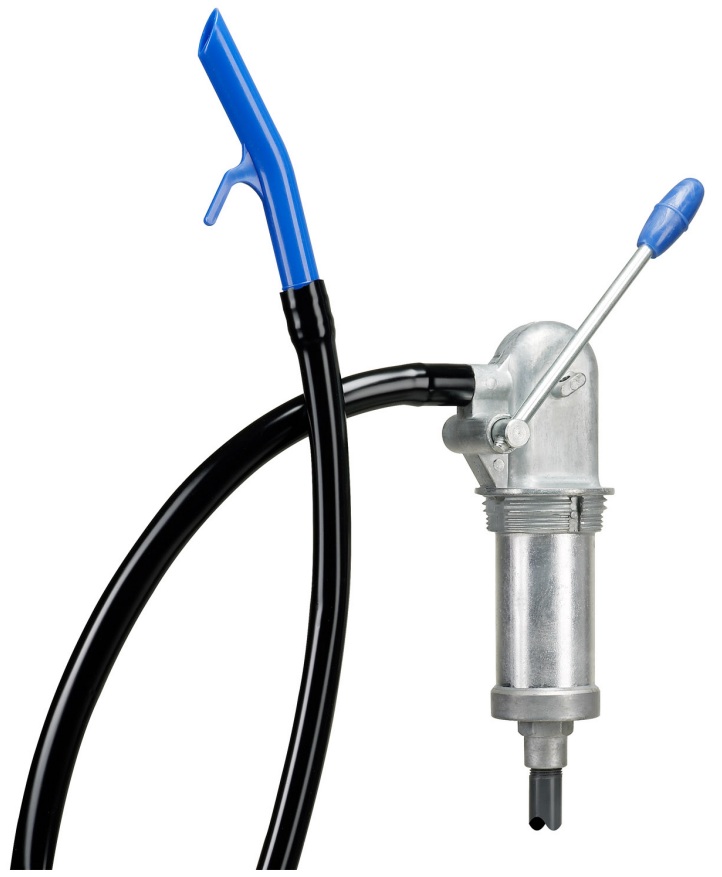

Barrel pump with ZBH G 2″ (7 l/min)

Function

Hand lever action pump with ZBH intended for use with 60L / 200L / 220L containers, drums, barrels and tanks.

Application

For oils up to SAE 50, self-lubricating, non-aggressive media, undiluted anti-freeze, fuel oil, diesel, petroleum.

+ Product

  • Triple-part suction pipe, can be cut to length
  • Sales package, with Bar code

Technical Specifications

  • Delivery rate: 0,12 l/stroke
  • Delivery rate at 60 strokes/min : Approx. 7L/min
  • Pumping media : Oils up to SAE 50
  • Application : 60L/200L/220L containers, drums, tanks
  • Discharge : PVC discharge hose, Lg 1000 mm, with plastic spout
  • Lenght of suction tube : 1500 mm (PVC rigid tube)
  • Barrel screw coupling : G 2’’ male
  • Materials of parts in contact with liquid media
  • Pump housing: impact-resistant zinc die casting
  • Seals: NBR
  • Dimensions (L x W x H) : 590 x 100 x 90 mm
