Level gauge for 60-200-220L jerrycans, barrels, oil drums

Function of the level gauge for jerrycans and drums

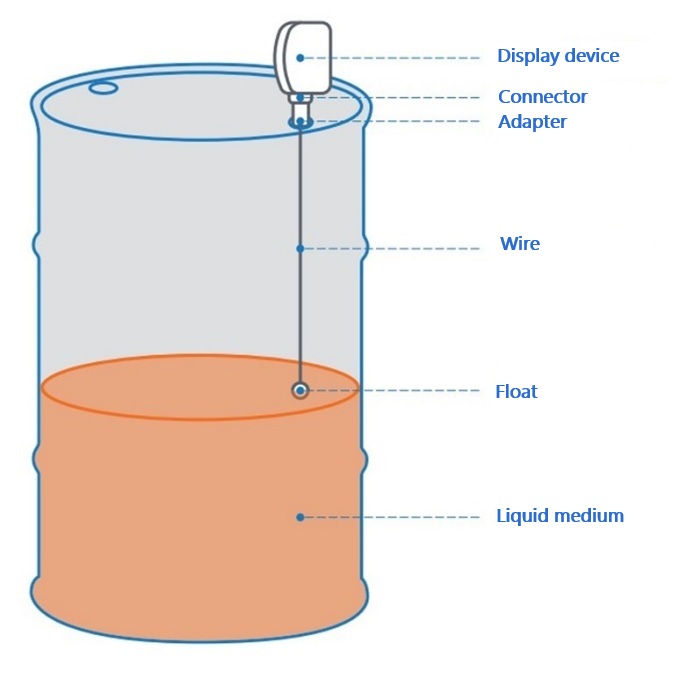

Universal mechanical float level gauge with a graduated dial indicating the volume in liters for standard 60L / 200L / 220L jerrycans and drums.

Application

Intended for use with liquid fluids such as heating oil, diesel, antifreeze, coolant, windshield washer fluid, fluid oils up to SAE 50, water, oil-water mixtures, AdBlue®, and fluids with a density > 0.7 kg/cm³

+ Product

  • Suitable for standard 60L / 200L / 220L jerrycans and drums
  • Quick and easy installation
  • Economical product

Technical Specifications of the level gauge for jerrycans and drums

  • Operating temperature : 0°C to + 40°C
  • Connection : 3/4’’
  • Screen dimensions : H 153 x W 106 x D 46 mm
  • Mounting position : vertical
  • Float material : HDPE (white)
