NEW ! SmartBox AIR Wi-Fi level gauge (charging via USB-C)

Function

The NEW SmartBox AIR Wi-Fi IP30 pneumatic level gauge is part of Self Climat’s SmartBox® range. It is a battery-operated (charging via USB-C, cable not included), electronic remote level gauge for a non-pressurised tank containing a liquid medium and gives the volume of liquid on the display unit (Liters, meters or %).
After a single login of the device onto the local WiFi network, information such as the filling level and battery status can be retrieved using the mobile phone app. This is possible if the mobile phone is connected to any network anywhere in the world.
The tank volume is determined by measuring the filling height on the basis of the pneumatic measuring principle. For this purpose, the measuring hose is inserted into the tank up to the tank bottom and filled with the operating medium according to the filling level.

Application

Suitable for waste oil, diesel, FAME, fuel oil, fuel oil bio, HVO, vegetable oil, rainwater and other water-endangering, non-flammable liquids.

+ Product SmartBox AIR Wi-Fi

  • Suitable for all tank shapes, tank height up to 4 m (water) and 4,50 m (fuel oil)
  • Simple installation and start-up (configuration via smartphone or tablet), even without special knowledge
  • Measurements are updated hourly, dayly, weekly or monthly, depending on individual settings.
  • Long battery life (at least one year), easy charging via USB-C interface (cable not included). The battery level status can be read using the mobile phone app or directly on the display unit.
  • Multilingual app, available in multiple languages for international users (German, English, French, Dutch, Spanish, Polish).

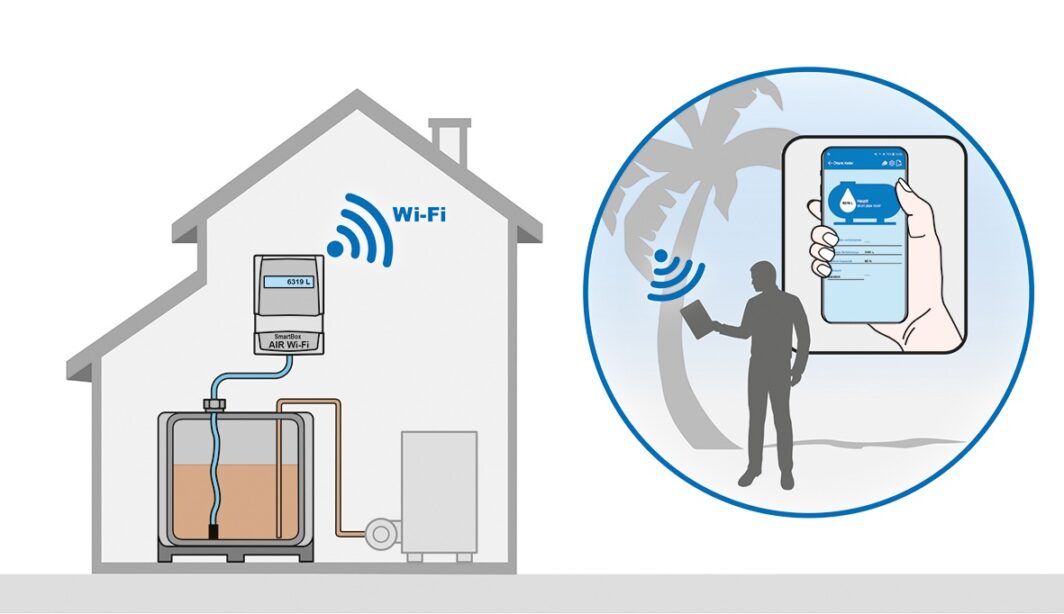

Application example SmartBox AIR Wi-Fi

Schéma SmartBox AIR Wi-Fi

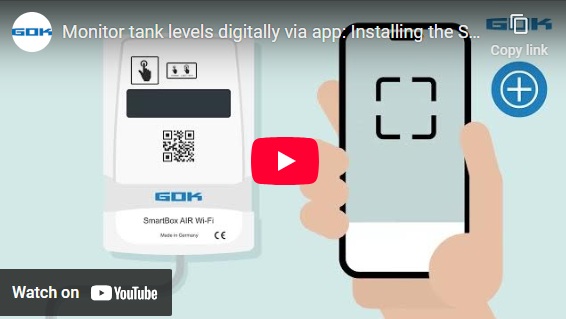

Video - Installing the SmartBox AIR Wi-Fi is that simple

video-smartbox-air-wifi-en

  1. Install the SmartBox AIR Wi-Fi.
  2. Connect and set up the device via hotspot using a mobile device.
  3. Download the SmartBox app from the Play Store (Android) or App Store (iOS) for mobile use:
    SmartBox App im Google Play Store    SmartBox App im App Store
  4. Register the SmartBox AIR Wi-Fi in the local Wi-Fi network.
  5. Filling level monitoring can now be performed within the local Wi-Fi network or worldwide via mobile networks

Our blog articles for more details

sb-air-wifi-installation

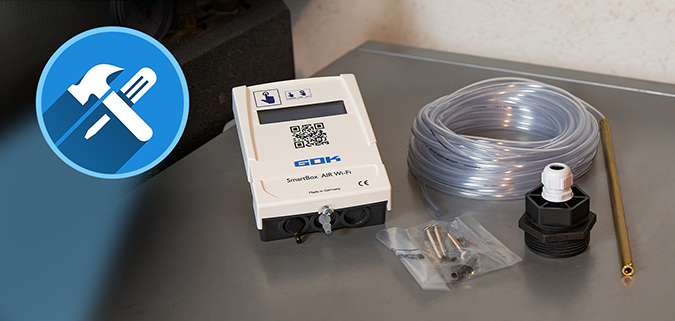

SmartBox AIR Wi-Fi – Install and Commission  Read blog article







SmartBox AIR Wi-Fi – Function and Advatanges  Read blog article



The SmartBox AIR Wi-Fi pneumatic level gauge (battery-operated charging via USB-C) is a Self Climat product guaranteed for 12 months from date of purchase, provided it is installed and used in accordance with our documentation.

Further technical information is available on our technical documentation.

Should you need any further information, please do not hesitate to contact us.
